Project Axiom

A student form and CMF study for a recovery device, expressed through a sculptural FDM appearance model.

DWG NO.DWG-007
CATEGORYWELLNESS
MATERIALPLA METAL
OVERALL254 W × 216 H MM
YEAR2026
SHEET8 / 16
FIG 01 · FINAL ASSEMBLY Project Axiom appearance model positioned on its sculptural dock concept
FIG 01 — DEVICE + DOCK CONCEPT · FINAL APPEARANCE PROTOTYPE
SEC 01

Brief概要

THE QUESTION

Can a muscle relief device feel like part of a high-end interior instead of equipment waiting to be hidden?

This study reinterprets the massage-gun typology as a continuous sculptural composition for spa and gym interiors. The appearance model explores the silhouette, hand opening, surface transitions, and docked resting state. A dedicated dock concept makes storage part of the visual composition.

COURSEID DESIGN PRINCIPLE II
FOCUSFORM · CMF · INTERIOR FIT
TOOLSSKETCHING · RHINO
OUTPUTFDM APPEARANCE MODEL
SEC 02

Form Language形态语言

THREE VOLUMES · ONE SILHOUETTE

The grip, working head, and vertical fin were composed to read as one continuous sculpture.

The CMF drawing established the contrast between satin-black surfaces and thin gold transitions. The physical model then tested whether those lines could preserve the same visual continuity across separate printed parts.

FIG 02 · CMF DIRECTION Digital CMF drawing of Project Axiom in a spa-like interior
FIG 02 — SCULPTURAL MASSING · BLACK BODY · GOLD TRANSITION LINES
FIG 03 · TRANSLATION Assembled Project Axiom appearance prototype matching the CMF direction
FIG 03 — DIGITAL INTENT TRANSLATED INTO A PHYSICAL APPEARANCE MODEL
SEC 03

Docked Resolution停放状态

DISPLAY IS PART OF USE

The base gives the device a deliberate resting state instead of leaving it loose on a counter.

Plan, elevation, and section views set the overall 254 mm width and 216 mm height. The recessed dock locates the device while the broad circular base stabilizes the composition visually.

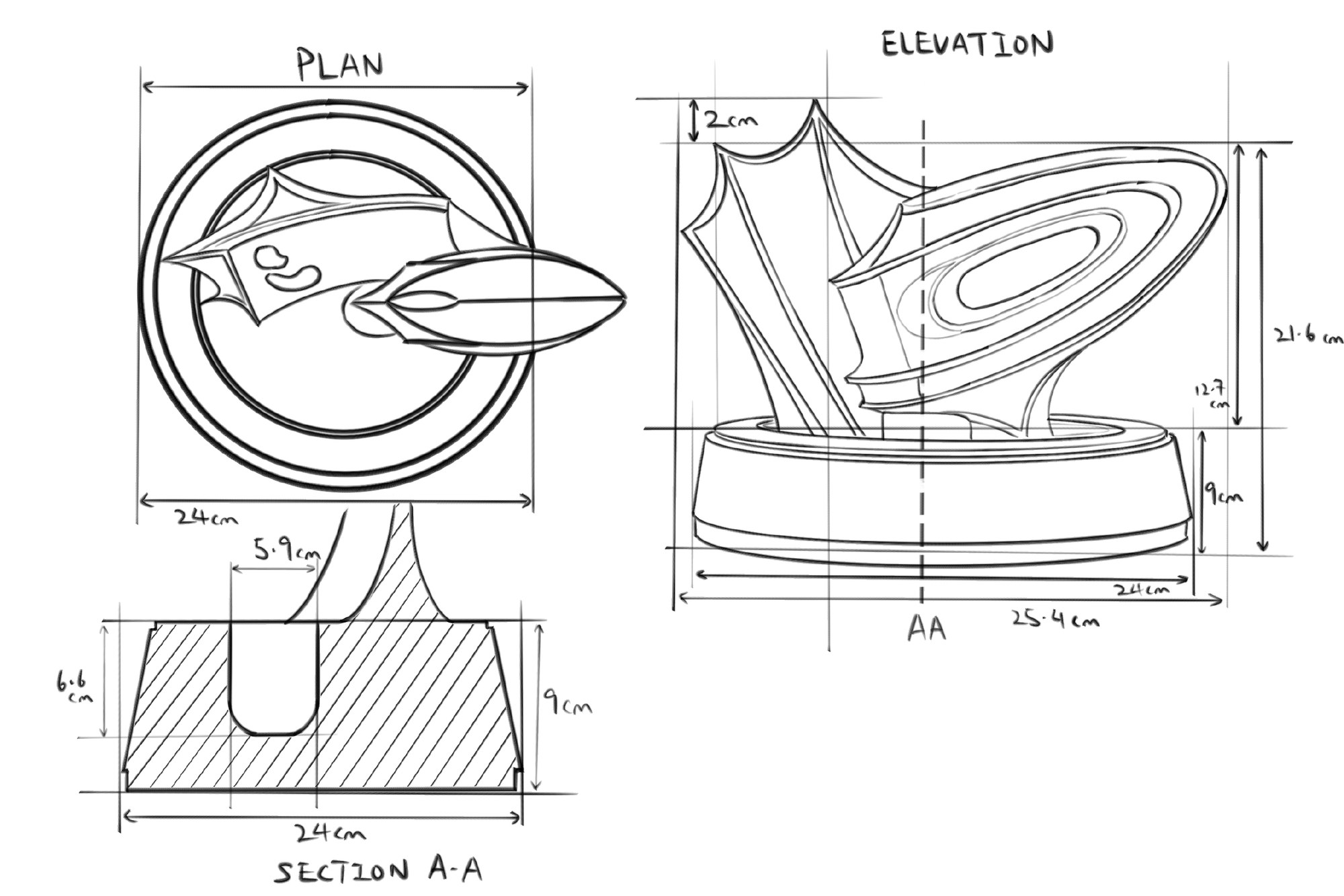

FIG 04 · TECHNICAL STUDY Project Axiom plan, elevation, and section drawing with dimensions
FIG 04 — PLAN · ELEVATION · SECTION A-A

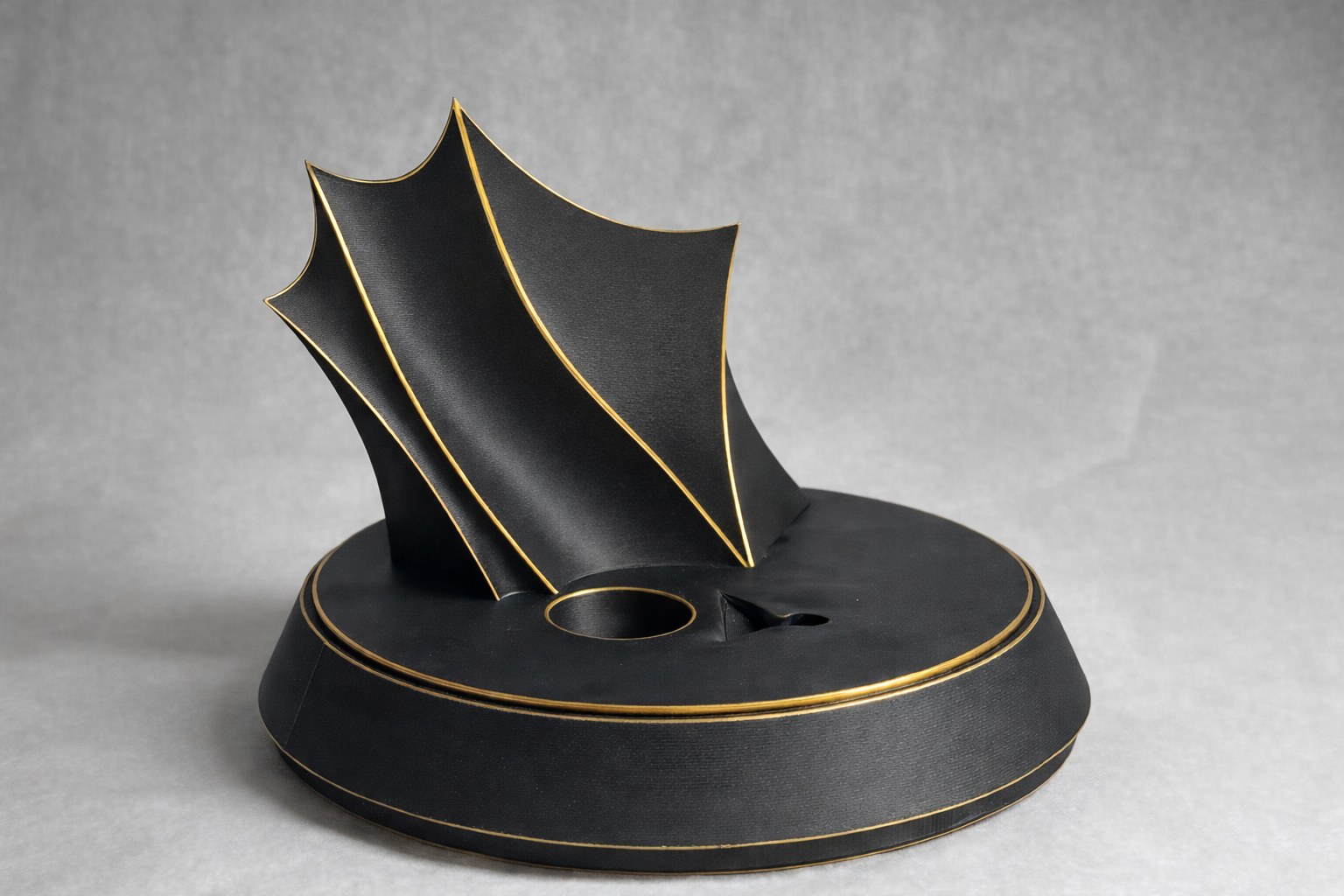

FIG 05 · DOCK CONCEPT Project Axiom dock concept with the appearance model removed
FIG 05 — RECESSED DOCK · SCULPTURAL RESTING STATE
SEC 04

Grip & Finish握持与表面

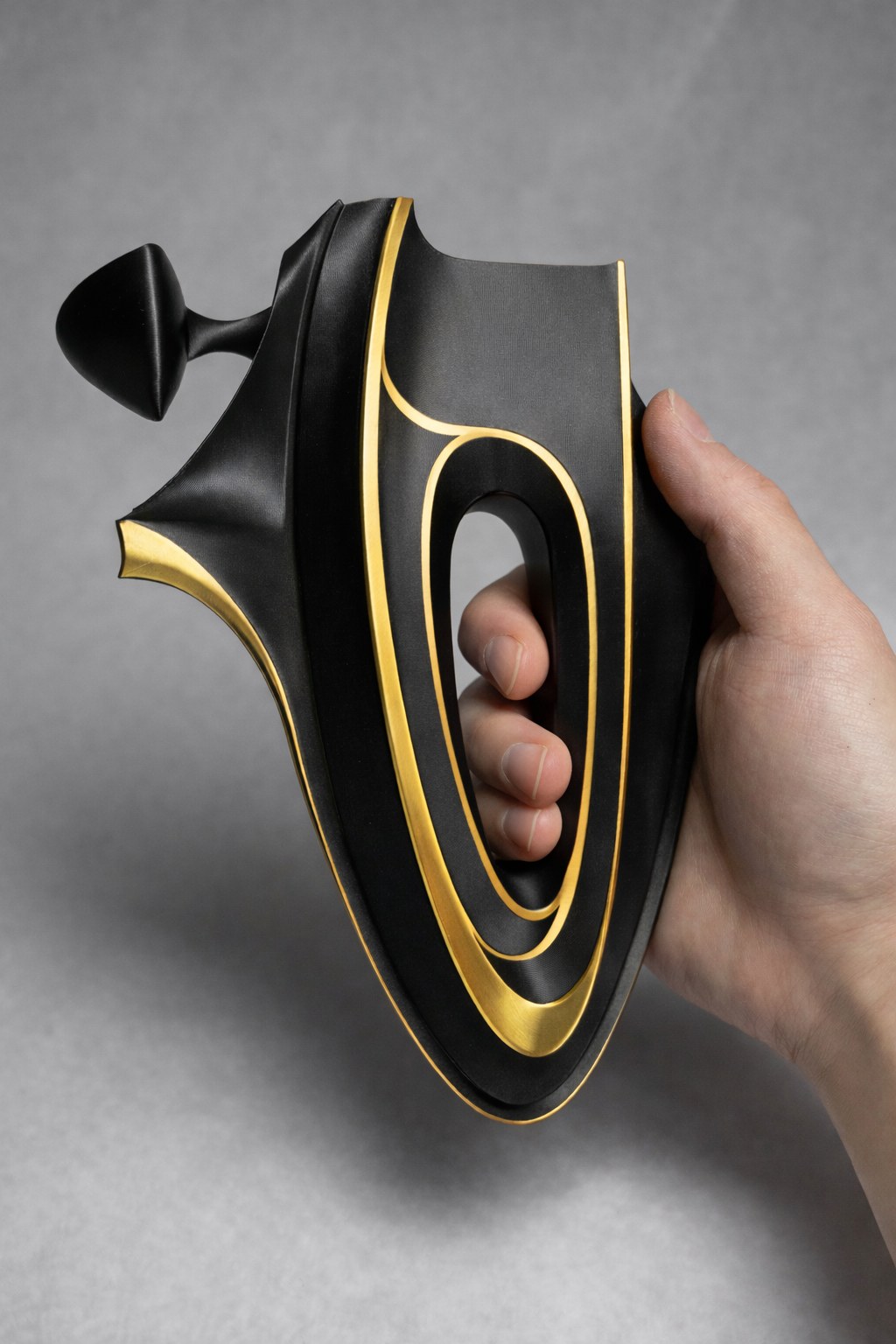

FIG 06 · DEVICE DETAIL Project Axiom held in one hand, showing the integrated grip cavity and gold edge accents
FIG 06 — INTEGRATED GRIP CAVITY · HAND SCALE · EDGE ACCENTS
DETAILS PRESERVE THE WHOLE

The hand passes through the form rather than attaching to a separate handle.

PLA Metal filament gives the appearance prototype a restrained reflective surface. Thin gold accents mark structural transitions and suggest metallic inlays for a future production direction.

GRIPINTEGRATED CAVITY
SURFACEPLA METAL
ACCENTGOLD EDGE LINES
